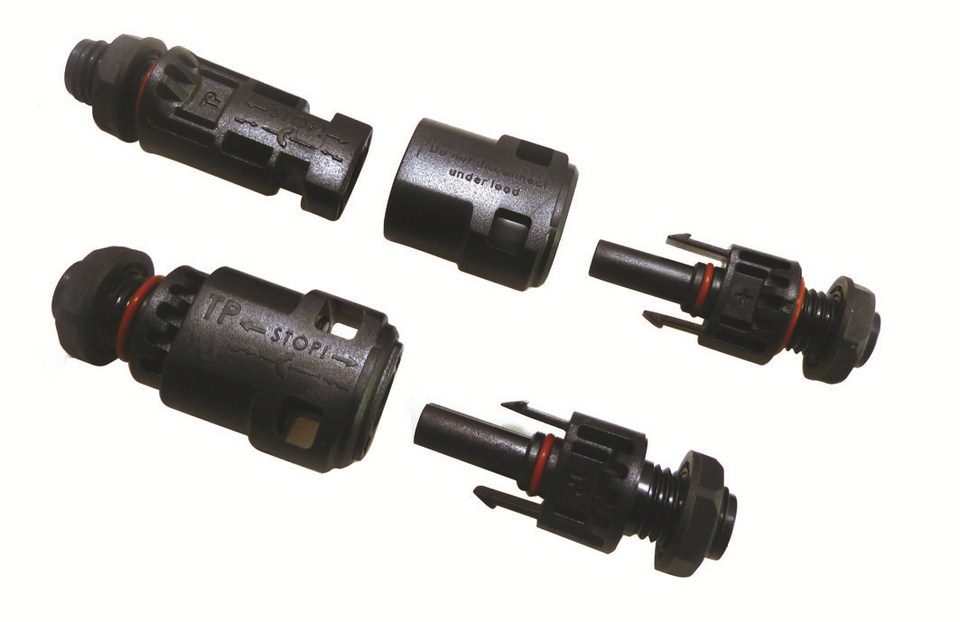

TPCB-6P PV Connector for Panel Type and PV System connecting

        Characterized for anti-aging and anti-ultraviolet function.
        Qualified to be used under the harsh environment.
        Interlocking system for connecting, release connection with tooling and MC4 equivalent
        Designed for panel type installation and connection
        Protection degree: IP68
Specification Material
Box

Main body:PPO

nuts:PA66-GF


Wall sealing:Silicone
Contact terminal:Tin plated copper alloy
Connector side


Environmental/Reliability
Operating temp. range:-40°C to +85°C
Upper limit temp.:+105°C
Pollution degree:2
Degree of protection:IP68

Electrical Specification
Rated voltage:1500VDC EM/1000V UL
Rated current:Up to 35A,
2.5?m㎡ - 6.0 m㎡
Application class:Class A
Overvoltage category:III
Rated impulse voltage:8 kV
Certification:TUV Rheinland
EN62852:2015, R50465271
UL6703:2014 US72201731 01
Others
Contact method:Snap-in
