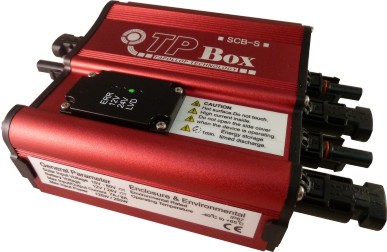

SCB-S1-250 Smart Charger Box
●
Shorten charging time
●
Smart charging management
●
Designed for thin film PV module
General Parameter
MaximumInputVoltage:80 Vdc
MPPTOperatingRange:18~50 Vdc
MaximumInputCurrent:9A
RatedInputDCPower:250 (24V) /125 (12V)
BatteryVoltage:12 / 24 (Automatic)
NumberOfChargeStage:3 stage
Selfconsumption:40 mA
MaximumEffciency:96%
Enclosure & Environmental
Weight:0.7kg
Dimensions [ L*W*D]:190*125*55 mm
Protection class:IP67 Outdoor Use
Operating temperature:-10~55 ℃
Humidity:0~100 %
Terminal size (single wire):2.5mm² / AWG14
Cooling:Natural Convection
OUTPUT
Function & Feature
Maximum power point tracker:Yes
Automatic load disconnect:Yes (maximum load 7A)
Over load current protection:Yes
Over charge protection:Yes
