 SCB-600 Smart Charger Box

        Shorten charging time
        Smart charging management
        Designed for mono/poly PV module

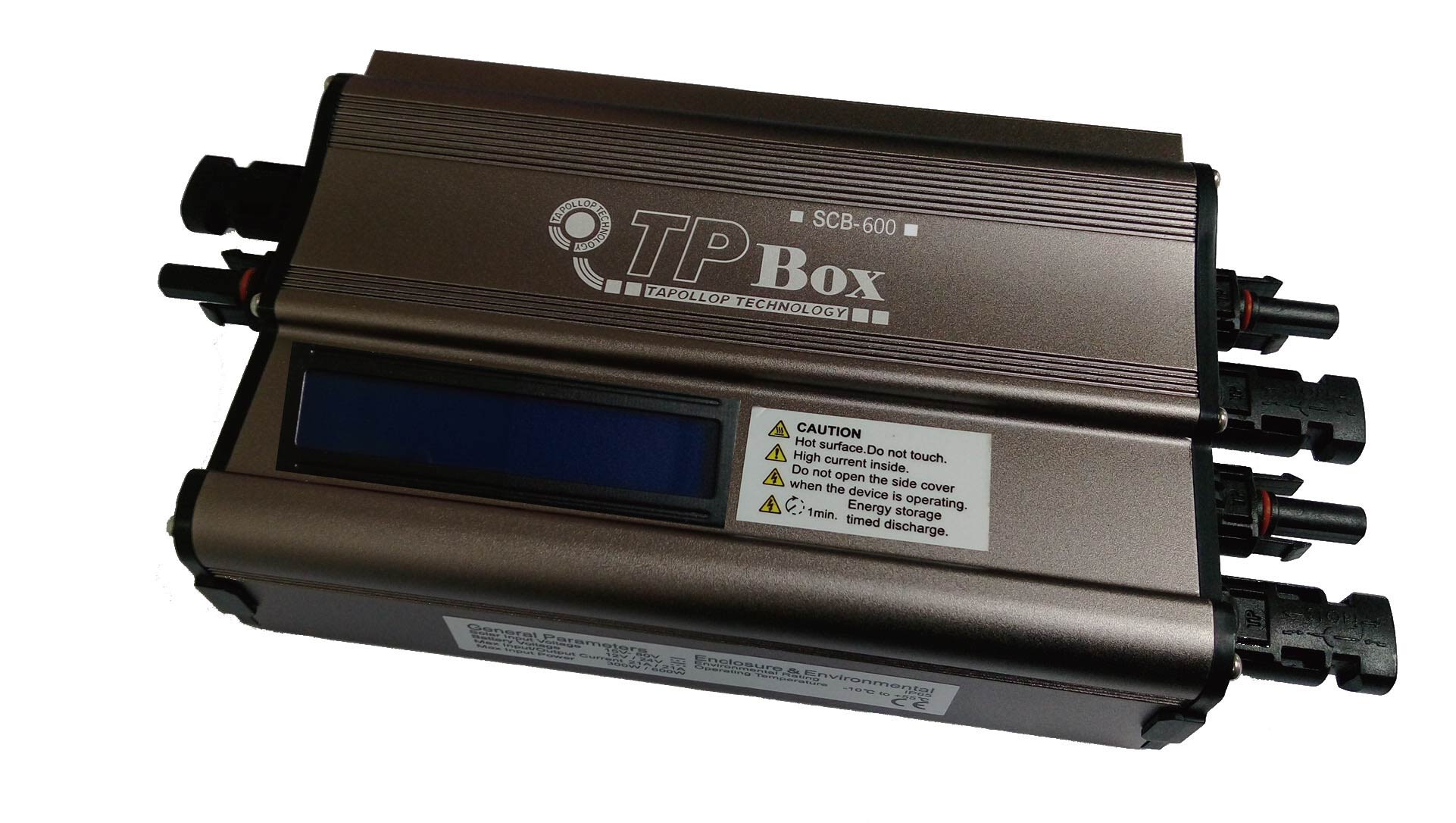

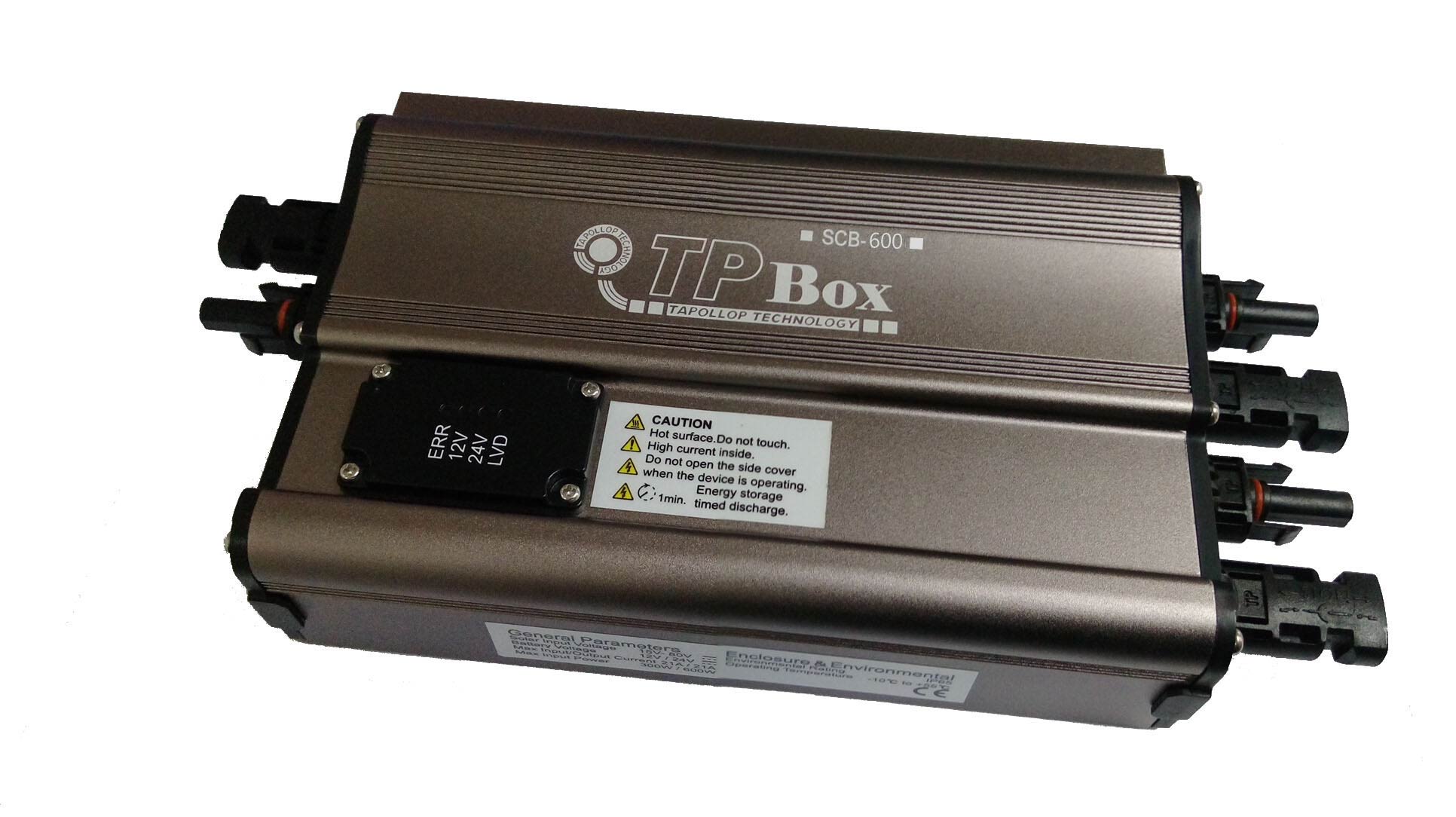

        Display : LED / LCD



General Parameter
MaximumInputVoltage:80 Vdc
MPPTOperatingRange:18~50 Vdc
MaximumInputCurrent:17A
RatedInputDCPower:600 (24V) /300 (12V)
BatteryVoltage:12 / 24 (Automatic)

NumberOfChargeStage:3 stage



MaximumEffciency:96%
Enclosure & Environmental
Weight:1.1kg
Dimensions [ L*W*D]:305*125*55 mm
Protection class:IP65 Outdoor Use
Operating temperature:-10~55 ℃
Humidity:0~100 %
Terminal size (single wire):4mm² / AWG12
Cooling:Natural Convection

OUTPUT


Function & Feature
Maximum power point tracker:Yes
Automatic load disconnect:No(maximum load 17A)
Over load current protection:Yes
Over charge protection:Yes
