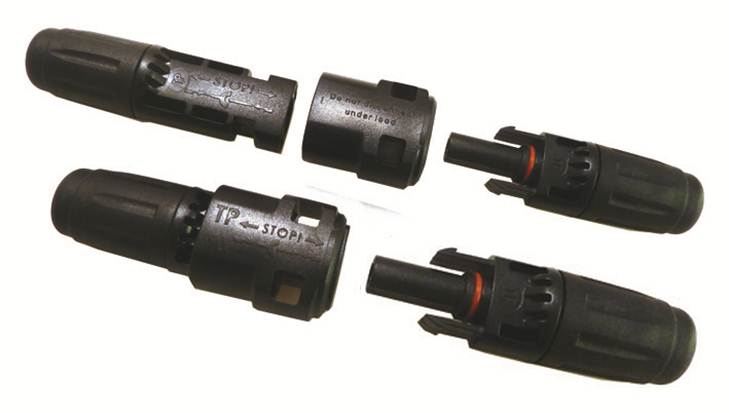

TPCB-4     PV Connector for Junction Box Assembly and PV System Integration

        Characterized for anti-aging and anti-ultraviolet function.
        Qualified to be used under the harsh environment.
        Interlocking system for connecting, release connection with tooling and MC4 equivalent
        Suitable for junction box assembly and PV system filed wiring.
        Protection degree: IP68.



Specification Material
Box

Main body:PPO
Gland nuts:PA66-GF


Gland sealing:TPV,Silicone

Contact terminal:Tin plated copper alloy
Connector side


Environmental/Reliability
Operating temp. range:-40°C to +85°C
Upper limit temp.:+105°C
Pollution degree:3
Degree of protection:IP68

Electrical Specification
Rated voltage:1100V VDC/TÜV, 1000V VDC/UL
Rated current:Up to 25A @2.5 & 4.0 m㎡
;Up to 35A @6.0 m㎡
Application class:Class A
Overvoltage category:III
Rated impulse voltage:8 kV
Certification:TÜV Rheinland EN62852:2015, R50372878
UL 6703,E344920
Others
Contact method:Snap-in
