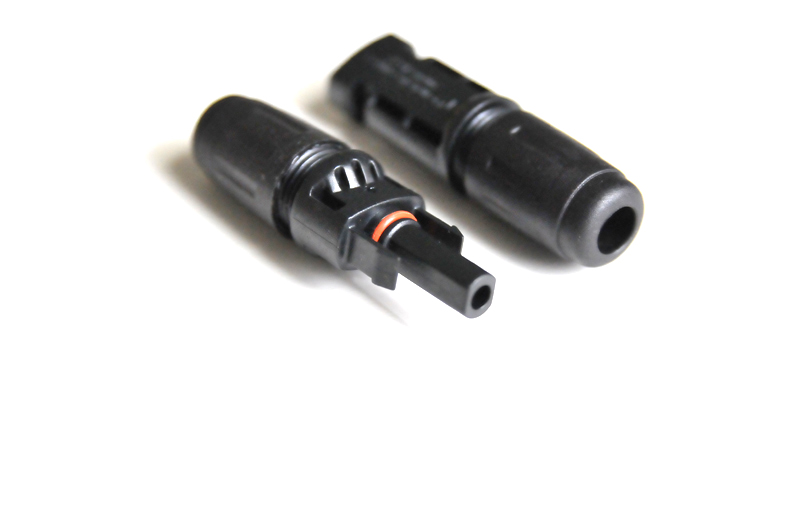

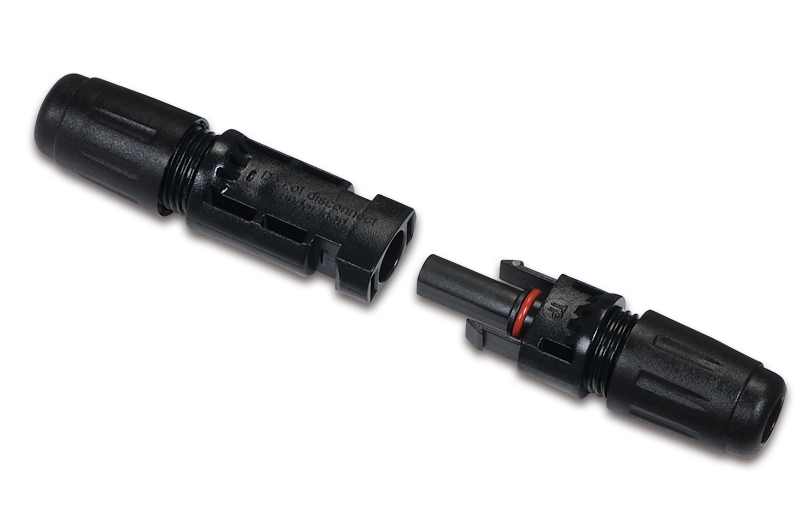

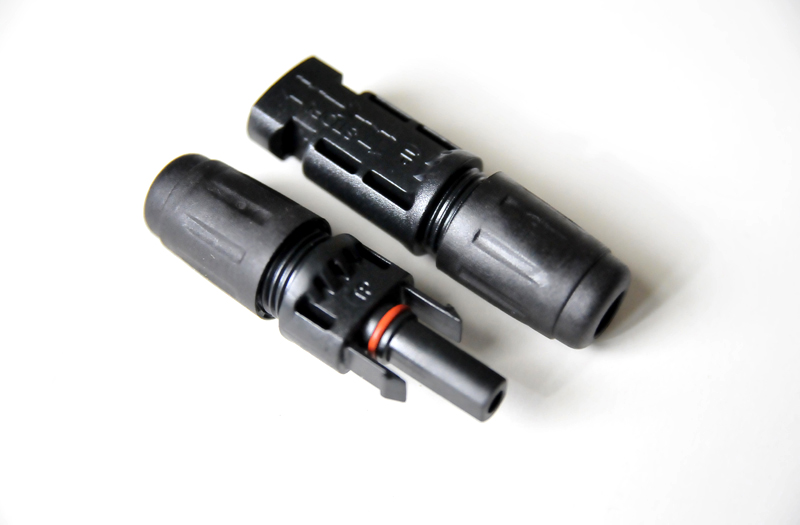

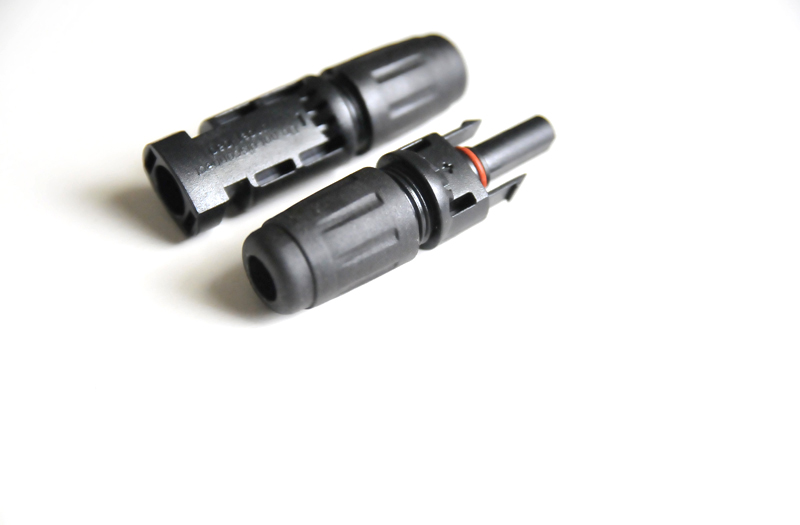

TPCB-2     PV Connector for Junction Box Assembly

        Characterized for anti-aging and anti-ultraviolet function.
        Qualified to be used under the harsh environment.
        Interlocking system for connecting and MC4 equivalent
        Designed for junction box assembly
        Protection degree: IP67


Specification Material
Box

Main body:PPO
Gland nuts:PA66-GF


Gland sealing:TPV,Silicone

Contact terminal:Tin plated copper alloy
Connector side


Environmental/Reliability
Operating temp. range:-40°C to +85°C
Upper limit temp.:+125°C
Pollution degree:3
Degree of protection:IP67

Electrical Specification
Rated voltage:1000V VDC/TÜV, 600V VDC/UL
Rated current:Up to 25A @2.5 & 4.0 m㎡
Application class:Class A
Overvoltage category:III
Rated impulse voltage:8 kV
Certification:TÜV Rheinland EN50521: 2008, R50159695
UL 6703,applied
Others
Contact method:Snap-in
