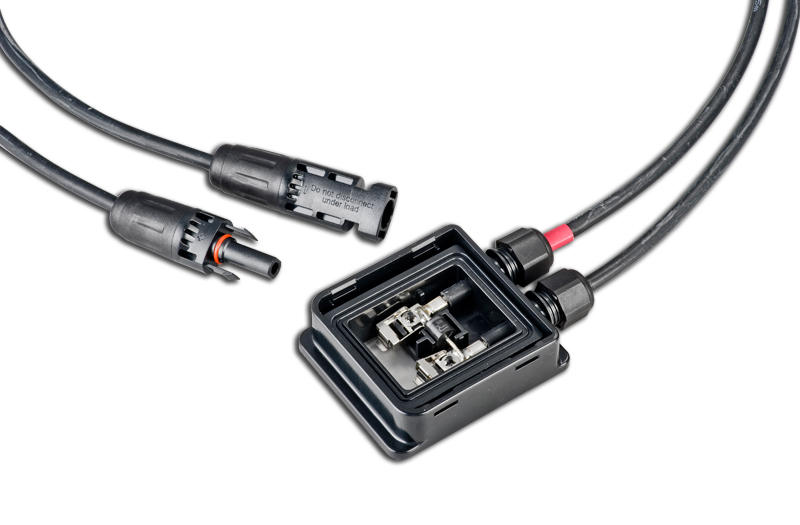

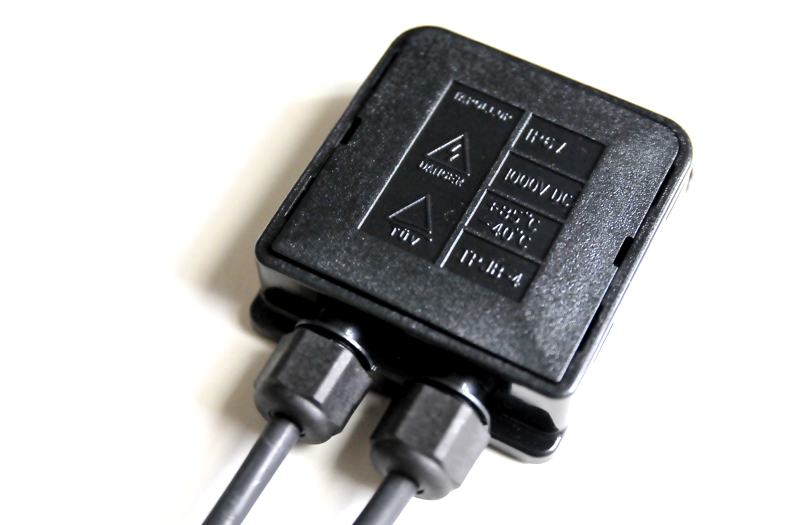

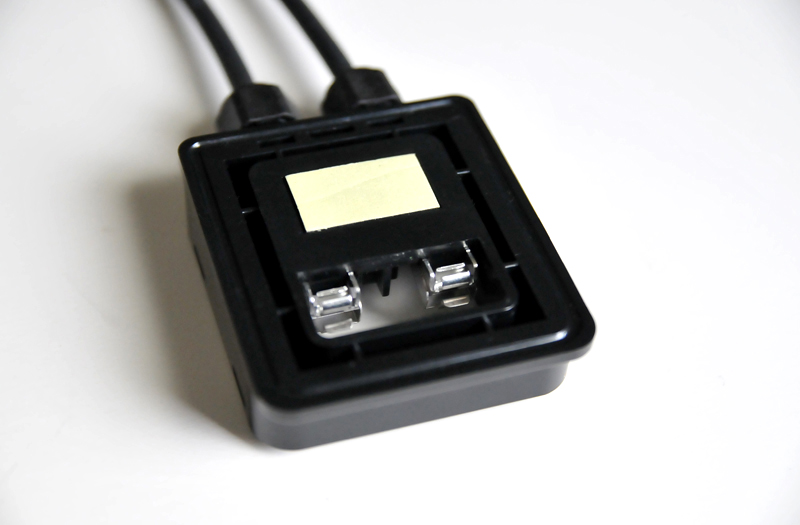

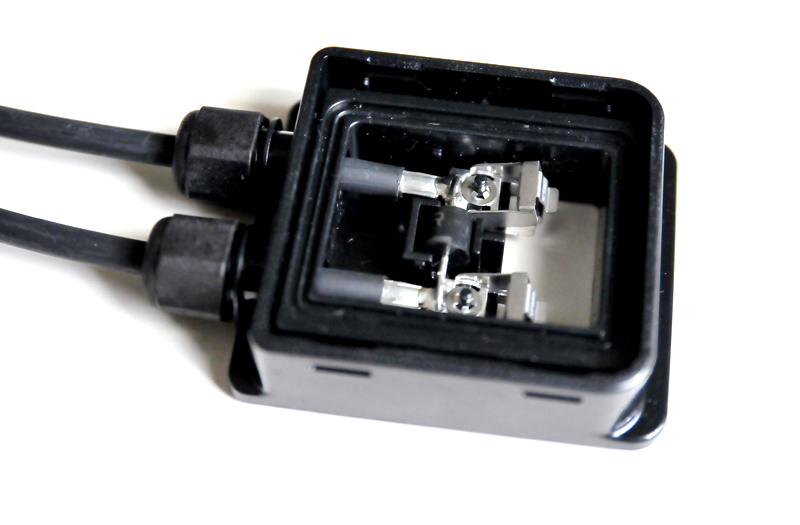

TPJB-4 Junction Box for Thin Film Type PV Module

        The plastic material characterized for anti-aging and anti-ultraviolet function.

        Qualified to be used under the harsh environment.

        Various mounting material, including silicon glues and double-sided adhesive types.

        Rated currents are optional according to module specification.

        Both terminal-crimping and terminal-soldering are available.

        Protection degree: IP67, without potting

Specification Material
Box
Cover:PPO
Main body:PPO
Gasket:Silicone,EPDM, Silicone
Contact terminal:Tin plated copper alloy, stainless steel
Gland nuts:PA66-GF
Gland sealing:TPV,Silicone
Mounting material:Silicone glue, double side adhesive type

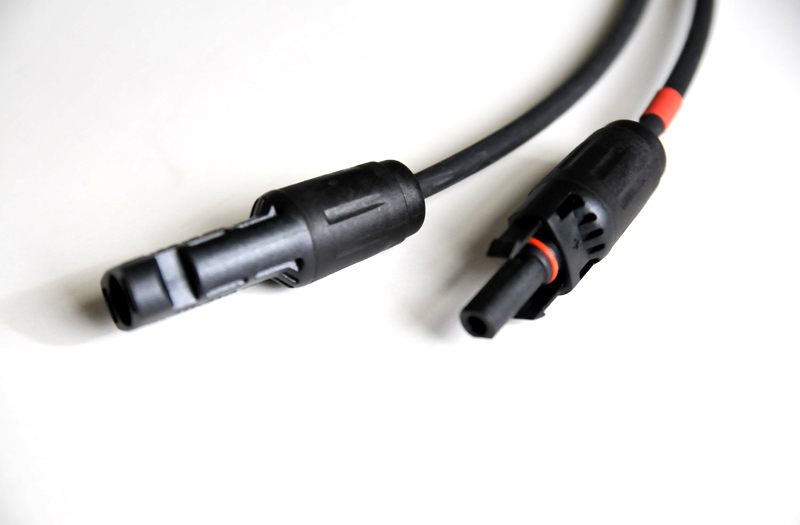

Connector (TPCB series)
Main body:PPO
Gland nuts:PA66-GF
Gland sealing:TPV,Silicone
Contact terminal:Tin plated copper alloy
Environmental/Reliability
Box
Operating temp. range:-40°C to +85°C
Upper limit temp.:+105°C
Pollution degree:3
Degree of protection:IP67
Connector (TPCB series)
Operating temp. range:-40°C to +85°C
Upper limit temp.:+125°C
Pollution degree:3
Degree of protection:IP67/IP68

Electrical Specification
Box
Rated voltage:1000V VDC/TÜV, 600V VDC/UL
Rated current:Up to 5A with potting 6A
Application class:Class A
Overvoltage category:III
Certification:TÜV Rheinland DIN V VDE V 0126-5:2008/05, R50159519
UL 3730,E326769
Connector (TPCB series)
Rated voltage:1000V VDC/TÜV, 600V VDC/UL
Rated current:Up to 25A @2.5 & 4.0 m㎡
Application class:Class A
Rated impulse voltage:8 kV
Certification:TÜV Rheinland EN50521:2008/11, R50159695
UL 6703,E344920
Others
Model type of box:TPJB-4-X
Model type of connector:TPCB series
Number of diodes:1
Number of terminals:2
Ribbon contact method:spring contact, soldering
Diode:Diotec P1000M, BY550-1000
Max. ribbon width:5mm
Max. ribbon thickness:0.3mm
Cable:(1) LEONI Studer AG (2) TAPOLLOP PV Cable
Cable assembly left:TPCB series-F (Anode”+”)
Cable length left (L1):100cm±10cm, option
Cable assembly right:TPCB series-M (Cathode”-”)
Cable length left (L2):100cm±10cm, option
